Length
19 ft 7 1/2 in - 5.98 m
Height 7 ft 8 in - 2.33 m
Wing span 28 ft 5 in - 8.65 m
Cabin width 46 1/2 in - 175 l
Baggage compartment volume 6,2 ft3 - 175 m |
Empty weight 739 LB 303 kg
MTOW 1268 LB 575 kg
Useful load 529 LB 272 kg
Design load factors +6g/-3g
Max. baggage 55 LB 25 kg
Wing fuel tank capacity 31,2 USG 118
|
Never exceed airspeed 146 KIAS 270
km/h
Maximum level airspeed 115 KCAS 213 km/h
Cruise at 75% 110 KCAS 204 km/h
Stall speed no flaps 45 KCAS 83 km/h
Stall speed with flaps 40 KCAS 74 km/h
Rate of climb 859 ft/min 4,4 m/s
Service ceiling 13100 ft 4000 m
Take-off run 620 ft 190 m
Landing run 590 ft 180 m
Total range 700 NM 1300 km
Total endurance 8.5 hr
|

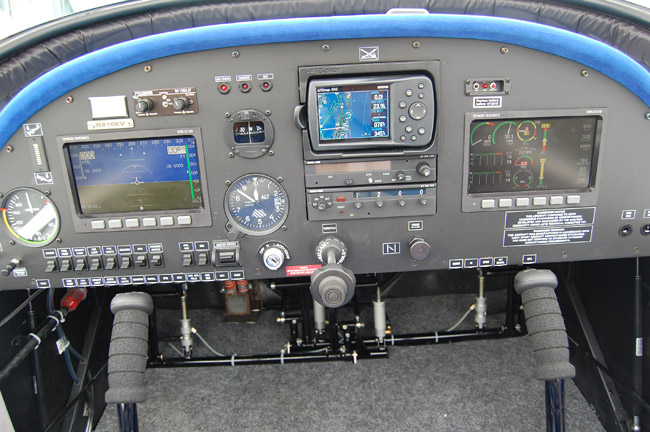

Garmin
396
Dynon 100 EFIS/Dynon 120 Engine
monitoring system
King 76A Com
King 76 Transponder w/mode C
PSI 1000 two place intercom |
Vne:
Vno:
Va:
Vfe:
Vso:
Vs1:
Vy flaps up:
Vy flaps 15:
Vx flaps up:
Vx flaps 15:
Short final: |
146 KIAS
103 KIAS
86 KIAS
70 KIAS
37 KIAS
41 KIAS
62 KIAS
55 KIAS
48:KIAS
54 KIAS
48 KIAS |
Demonstrated crosswind: 10 knots
Maximum wind (demonstrated): 26 knots
Normal landing flaps 30 or 50
Short field landing flaps 50 |
